| Basic Information: |
| CPU |
Onboard Intel Celeron J6412 / N100 |
| TDP |
10W |
| Motherboard |
120 x 120mm customized size |
| BIOS |
American Megatrends Inc |
| Chipset |
Elkhart Lake |
| Memory |
1* SO-DIMM DDR4 Slot,Support 4GB/8GB/16GB DDR4-2133, LPDDR3-1866, DDR3L-1600 |
| OS |
Windows 8/10/11/Linux/WES10 |
| PXE |
YES |
| Audio |
Intel High Definition Audio Controller |
| Network |
1 x Realtek 811H Gigabit Ethernet Controller10/100Mbps/1000Mbps BaseT LAN |
| Video |
Intel® UHD Graphics |

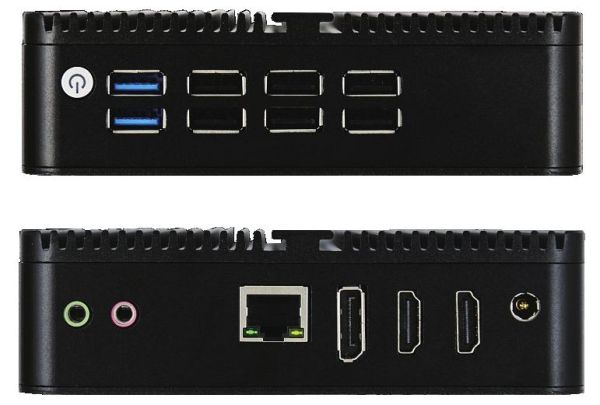

| Input/output port: |
| Switch |
1 x Power On/Off Switch |
| Power |
1 x 12V DC In |
| USB |
6x USB2.0, 2 x USB3.0 |
| Display |
2 x HDMI 1.4, 1 x DP 1.2 |
| LAN |
1x RJ45 Giga LAN |
| Audio |
1 x MIC, 1 x SPK |
| Storage: |
| MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| M.2 |
1 x M.2 slot for NVME 2280 SSD |
| SATA |
1 x SATA3.0 slot for SATA HDD or SSD, , support 6Gb/s |
| Wi-Fi: |
| Module |
1 x M.2 2230 slot for Wi-Fi & Bluetooth module |
| Antenna |
2 x inner RF cables and 2 x external antennas |
| Power and Working Environment |
| Input |
100-240V AC/50-60Hz |
| Output |
12V~+19V, recommend 12V/5A |
| Operating Temperature |
-20°C/+60°C |
| Storage Temperature |
-30°C/+70°C |
| Relative Humidity |
10%~90% @30°C (non-condensing) |
| Product Dimension & Details |
| Size |
135*127*38.7mm |
| Weight |
Net 0.8kg, Gross 1kg |
| Shell |
Black color aluminum alloy (any customized color for bulk order) |
| Cooling Mode |
Fanless |
| Functions |
Watchdog, Auto power on, Wake-On-LAN, PXE |
| Package Content |
| Standard |
- 1xMini PC,
- 1xPower Adapter,
- 1xPower Cord,
- Wi-Fi antennas,
- 1xHDMI cable,
- 1xScrews Bag,
- 1xUser Manual (ebook)
|
| Optional |
- 1xUser Manual (printed),
- 1xVESA mount
|
