All-in-One Powerfull Indu

Kod producenta
3 996,00 zł
W magazynie
  • Onboard DDR4 8Gb or 16Gb Memory for option.
  • LCD+HDMI dual display, Full-plane sensitive touch screen in synchronous/asynchronous mode.
  • Front Panel IP65 Waterproof.
  • Low consumption 9~36V wide voltage input.
  • Aluminum Alloy case and fanless system without cooling fan, no any noisy.
  • Rich interfaces fit for many applications and multiple processors for your option.
All-in-One Powerfull Industrial Panel PC VenBOX EG-1501B with Intel CPU, Rich I/O Interfaces, LCD display jest do kupienia w przyrostach co 1

Industrial panel PC designed IP65 rated dust-proof and water-proof protection for the front panel. Support Windows and Linux-based operating systems. Industrial-grade mainboards ensure reliable performance under harsh conditions. Includes high brightness and sunlight readable screen for outdoor applications. Wide temperature and voltage operation, high-performance solutions designed for a wide range of industries such as the food industry, automation control, HMI, digital system, military, and industrial internet of things (IoT) devices.

Product Highlight:

  • Perfect protection

    • The front panel comply with IP65 standard. USB and RS ports and screen can be well protected, preventing from dusts and other bad environment. Magnesium alloy housing with aviation class not only makes the device much firmer, but also makes a better cooling with fanless design, as the working temperature ranges from -20 °C to 60 °C
  • Rich Interfaces

    • With abundant of interfaces for industrial application. RS232/422/485, Extended IO: RS232x4 GPIOx10, USB 2.0 & USB 2.0 high speed transmission ports, dual 2500Mbps RJ45 interfaces; 9~36V wide voltage input, support ACPI power management. Furthermore, built-in 2.5" SATA slot, mSATA slot and M.2 PCIe slot can be used for extra extension.
  • Customisation Options Are Available

    • You can customise RAM, SSD or hard drive and operating system
    • Choice with 10,15,17,19 inch high definition touchscreen
    • Intel Atom, Celeron or Intel Core processor fitted with the industrial standard, a superbly reliable that runs at low heat production but remaining high power for processor heavy applications.
  • Aluminium alloy frame

    • Has a lightweight aluminum alloy comprising it's frame, giving it the strength to endure while still remaining lightweight for portable operations.
  • Built for industry

    • Is a system designed around the industrial market, with it's metal outer frame, and 5 wire touchscreen - this system is reliable and tough at a fraction of the price of other industrial standard panel.
  • Multiple mounting options

    • Can be mounted in a variety of ways - using the 75/100mm VESA standard mounting holes it's available to be hung on the wall or flushmount the system using the front mounting clips. Rackmount mounting kits let you fit into your rack system for server management you can count on.
  • Application industries

    • Rich resource working with powerful Intel CPU processor, which applied in different industrial fields. For instance, intelligent industrial control system, electric power industry, electronic assembly line, numerical control machine, coal mine acquisition, fleet management, large warehouse management, manufacturing, retail, portable medical device, Human-machine interface, catering and entertainment, port terminal, agriculture machine, etc.

CPU Options:

  • Model: EG-1501B-J4125
    • CPU: Onboard 14nm Gemini Lake Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz(Turbo boost Technology TDP 10W 4MB Cache Intel® UHD Graphics 600.
  • Model: EG-1501B-8365U
    • CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i5-8365U 4 Cores 8 Threads 1.6GHz up to 4.1GHz(Turbo boost Technology) 6MB cache TDP 15W Intel® UHD Graphics.
  • Model: EG-1501B-10210U
    • CPU: Onboard Intel Comet Lake Refresh Intel Core i5-10210U Processor, 6M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
  • Model: EG-1501B-10510U
    • CPU: Onboard Intel Comet Lake Refresh Intel Core i7-10510U Processor, 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
  • Model: EG-1501B-J6412
    • CPU: Onboard 10nm Elkhart Lake Intel Celeron J6412 2.0GHz Quad Cores Four Threads Max 2.6GHz(Turbo boost Technology) TDP 10W 1.5MB Cache Intel® UHD Graphics.
  • Model: EG-1501B-8565U
    • CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i7-8565U 4 Cores 8 Threads 1.8GHz up to 4.6GHz(Turbo boost Technology) 8MB cache TDP 15W Intel® UHD Graphics.
  • Model: EG-1501B-10310U
    • CPU: Onboard Intel Comet Lake Refresh Intel Core i5-10310U Processor, 6M Cache, 1.7GHz up to 4.4GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
  • Model: EG-1501B-10610U
    • CPU: Onboard Intel Comet Lake Refresh Intel Core i7-10610U Processor, 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
  • Model: EG-1501B-8260U
    • CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i5-8260U 4 Cores 8 Threads 1.6GHz up to 3.9GHz(Turbo boost Technology) 6MB cache TDP 15W Intel® UHD Graphics 620.
  • Model: EG-1501B-8569U
    • CPU: Onboard 8th Gen Coffee Lake 14nm CPU Intel Core i7-8569U 4 Cores 8 Threads 2.8GHz up to 4.7GHz(Turbo boost Technology) 8MB cache TDP 28W Intel® Iris® Plus Graphics 655.

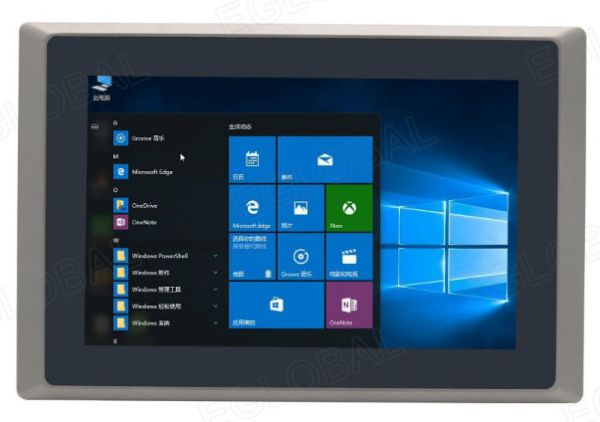

Front view Rear view
Rich interfaces

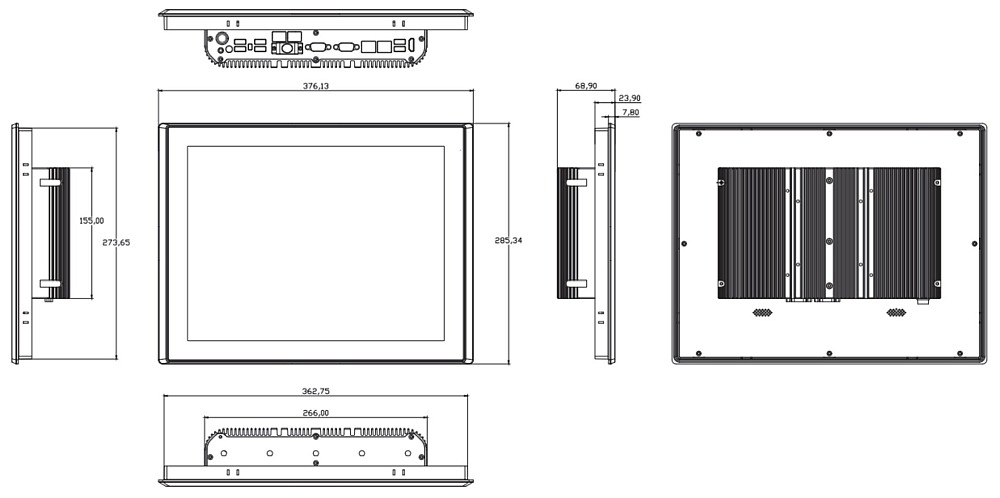

Product dimensions


Basic Information:
CPU Optonal Intel Celeron J4125/J6412 and Intel 8th/10th/11th/12th Gen core i5/i7 CPU
Watchdog tmer 1~65535 seconds programmable
  • J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB
  • 8th...12th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB
OS Windows® 10/11, WES 10, LINUX
Material Aluminum Alloy
Installaton method VESA 75/100 Panel mountng
Dimension 376.13x285.34x68.90 mm
Weight TBD
Module 1 x M.2 2230 slot for Wi-Fi & Bluetooth module1 x M.2 3042/3052 slot for 3G/4G/5G/Wi-Fi module
Antenna 2 x inner RF cables without external antennas
Display Informaton:
LCD Type 15.0" TFT-LCD
Resoluton 1024x768
Max color 16.7M
Brightness 350 cd/m2
Perspectve (CR>=10) -85~85° (H), -85~85° (V)
Backlight LED
Backlight life (hour) 30,000
Touch Screen Informaton:
Type 5-wire resistve
Transmittance 78%
Lifetme 250g clicks 10 million tmes
Input/output port:
Switch 1 x Power On/Off Switch
Amplifier 2 x 8Q 1W Amplifier output (Optonal)
Button 1 x AT/ATX DIP switch
  • J4125/J6412: 4 x USB2.0, 2 x USB3.0,
  • 8th...12th: 4 x USB3.0, 2 x USB2.0
Display 1xHDMI
LAN 2 x 2.5 GbE RJ45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V)
COM 2 x DB-9 COM1&COM2, RS-232/422/484
EXT IO 1 x Integrated 4-way 3-wire COM, 10-way GPIO, 1 x Remote Switch
Audio 1 x Audio Line-out
SIM 1 x embedded SIM card slot onboard
M.2 1 x M.2 slot for SATA 2242/2260/2280 SSD
M.2 1 x M.2 slot for NVME 2280 SSD
SATA 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Power and Working Environment:
Operatng Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Storage Humidity 10~90% @30°C, non-condensing
Power input DC 9 ~ 36V 4-pin air socket
Package Content:
  • 1xAll-in-one PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag,
  • 1xPhoenix Terminal

Touch Screen Industrial All-ln- High-quality, powerful configuration, cost-effective PC Strong performance Safety design Strong pressure resistance Strong temperature difference

Sensitive touch no freeze High-quality touch screen High resolution Responsive No blind spots Surface matte finish Smooth experience

The whole machine is more resistant to high and low temperatures Industrial display application and automation equipment, fearless even in harsh indoor environments

Front Panel IP65 Waterproof Pure flat waterproof and dustproof, effectively prevent dust and water droplets from entering the inside of the machine.

Multiple Processors for your option Intel® Celeron® J1900, 2.00GHz, up to 2.42GHz Intel® Core I5-4200U, 1.6GHz, up to 2.6GHz Intel® Core I7-4500U, 1.8GHz, up to 3.0GHz Intel Celeron J1900/4th/6th/7th/8th Intel Core i3/i5/i7 Optional

Rich Interfaces WiFi HD Port for On/Off TV/Monitor USB2.0	 	USB3.0 2*lntel Giga Lan 2*RS232/422/485 COM Switch AT/ATX Switch	 DC 9-36V input Audio output GPIOx14 (Optional)

ALL IN ONE Industrial Panel PC EG Series with Intel CPU, Rich Interfaces, LCD display | Packing kit

COM Interface Industrial instruments/ machine tools Acquisition card module Sensor/ mouse Medical control equipment Standard RS-232 (DB9 pin) Receipt printer POS machine Bar code Access control Other scanner system Modulation

175.2mm Multiple size TFT-LCD for your option 10.1 inch 7mm Opening Size 275,0mm 273.3mm  289.5mm

12.1 inch

15 inch

17 inch

19 inch

Aluminum Alloy Heat Dissipation

Application Industrial Automation	Kiosk	ATM Transportation	POS	Gaming Energy	Medical	Military

Product Pictures

Installation The wall-mounted bracket consists of two parts, A and B, and part B can be embedded in part A. (Remark: package content doesn't include the VESA mount default, which is optional.) All-in-one PC Wall Wall Mount A, installed on the wall. Wall Mount B, fixed back of the all-in-one PC. The Wall Mount B is inserted into the Wall Mount A, and the VESA Mount can be installed well. Pictures of the standard VESA mount for your reference to buy. Wall Mount B, fixed back of the all-in-one PC. Wall Mount A, installed on the wall. Plug and play Screw accessories Support a variety of installation methods EMBEDDED INSTALLATION WALL MOUNTED DESKTOP RACKMOUNTED VEST INSTALLATION

Accessories Power adapter and Power cable Accessories Screws

Power Plug Different Power Plugs shipped based on Buyer’ s Country Australia European Countries Britain (Africa) USA/Canada

Packing Soft foam protection Double protection Thick carton

KolorСiemno szary
Rozmiar376.13 x 285.34 x 68.90 mm, 4,22kg
