The POS335N2 offers an outstanding combination of low-power consumption and high-efficient reliability for a smart compact POS system. The spacesaving and easy-to-service characteristics make this small footprint POS terminal a perfect solution for the retail and hospitality industries. The POS335N2 offers a seamless integration for a variety of peripheral modules such as MSR, Fingerprint, Second Display and Customer Display.
Featuring a fanless Intel® Elkhart Lake Celeron J6412 (F34) or Tiger Lake i3-1115G4 (F84U) processor, the POS335N2 delivers industry-leading reliability and efficiency, whilst ensuring diverse operating requirements are met. The highly responsive, long-life 15” PCAP multitouch screen also ensures a smooth user experience, regardless of environment or application.
Its slim form factor facilitates a range of possible mounting options, which enables users to operate the system in a wide range of profiles. The design of the POS335N2 also allows for a range of integrated touch and non-touch secondary display options, ideal for customer information and point of sale marketing requirements, as well as an array of integrated peripherals.
Key Features
- Sleek, Stylish and Compact Energy Efficient
- Superior Serviceability and Upgradability
- Fanless Intel® J6412 (F34) or i3-1115G4 (F84U) processor
- Highly responsive, long-life 15” PCAP multi-touch touchscreen
- Range of integrated secondary display and peripheral options
- Support for a wide range of Windows and Linux Operating Systems
- Range of mounting options
Specification
Motherboard |
F34 |
F84U |
System |
Processor |
Intel® Elkhart Lake Celeron J6412 |
Intel® Tiger Lake i3-1115G4 |
Memory |
1x DDR4 up to 8GB |
1x DDR4 up to 16GB |
Storage |
128GB SSD (M.2) |
256GB SSD (M.2) |
Display |
Size and Resolution |
15" 1024x768 |
Touch Screen |
True-Flat PCAP multi-touch |
Expansion |
M.2 (E-Key) |
1 |
I/O ports |
USB Type-A |
2x USB3.0 2x USB2.0 |
USB Type-C |
1x USB2.0 (data only) 1x USB3.0 (data only) |
FeDP |
1x Flytech proprietary miniDP (for 2nd display) |
Serial Port |
2x DB9 (default 0V; COM1/COM2: 0V, 5V, 12V) |
LAN |
1x RJ45 |
Cash Drawer |
1x RJ11 |
DC Jack |
1x 4PIN (with latch) |
Audio |
Internal Speaker |
1x3W (Option) |
Indicator |
LED Indicator |
1 |
Power |
Power Adapter |
65W / 19V |
120W / 19V |
Communication |
WLAN + BT |
802.11 series, BT4.0 (Option) |
Peripheral (option) |
MSR |
3-Track MSR (USB) |
Fingerprint |
Fingerprint reader (USB) |
iButton |
iButton (USB) |
Customer Display |
LCM display 2 x 20 characters (USB) |
2nd Display |
11.6" 2nd display |
Certificate |
EMC & Safety |
FCC Class A, CE Mark, LVD |
Environment |
Operating Temperature |
0°C~35°C (32°F~95°F) |
Storage Temperature |
-20°C~60°C (-4°F~140°F) |
Humidity |
20% ~ 85% RH non-condensing |

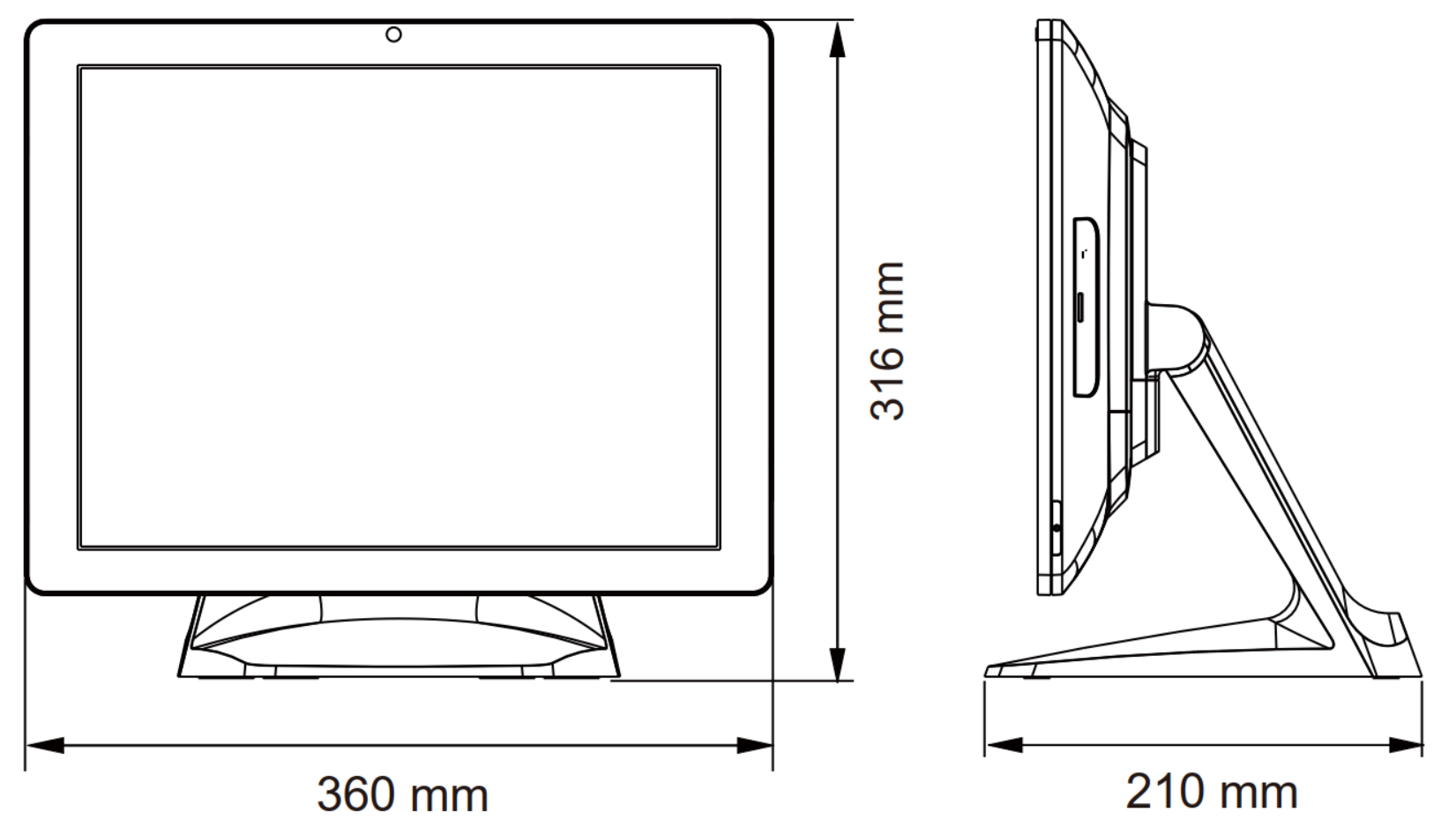

Dimensions (W x Dx H) |
360 x 216 x 316 mm (14.2" x 8.3" x 12.4") |
Weight |
5.4kg (11.9 lbs) |
Mounting |
VESA mount 100x100 |
OS Supported |
Windows 10 IoT Enterprise/Linux |
