HDMI matrix/switch 2X2 4K

Kod producenta
HDMX0003M1
168,00 zł
Brak w magazynie

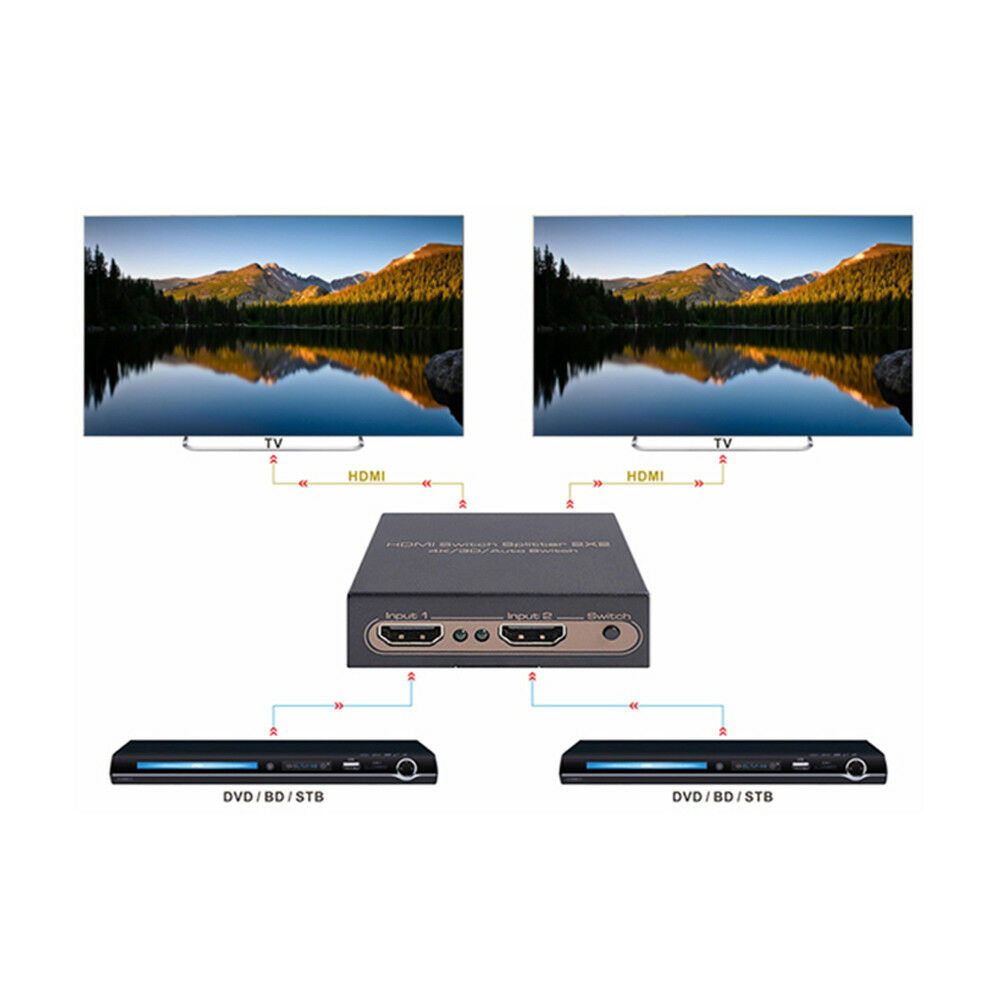

2x HDMI switch input ports and 2x HDMI split output ports.
It can switch any one of the two input HDMI signal source to two HD display at the same time.
Supports Full HD, 3D and 4K2K(24/30Hz) resolution.
Supports automatically detect the source device and switch for HDMI input ports.
Power-off memory.

Specifications:
2x HDMI switch input ports and 2x HDMI split output ports.
It can switch any one of the two input HDMI signal source to two HD display at the same time.
Supports Full HD, 3D and 4K2K(24/30Hz) resolution.
Supports automatically detect the source device and switch for HDMI input ports.
Power-off memory.
Supports 30/36-bit deep color.
Supports HDMI digital audio format of DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD.
No loss of quality. Support input or output up to 15-metres AWG26 HDMI standard cable length.
Easy to install. 5V DC USB power supply.

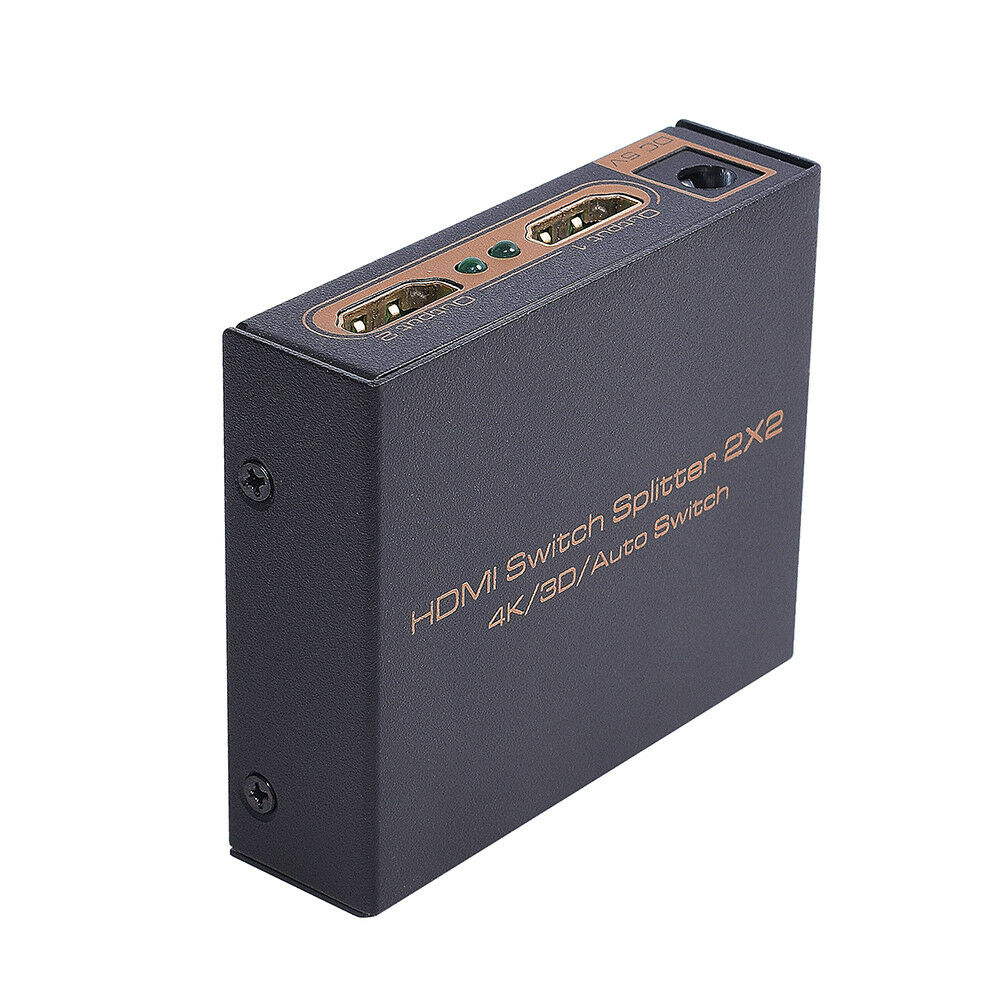

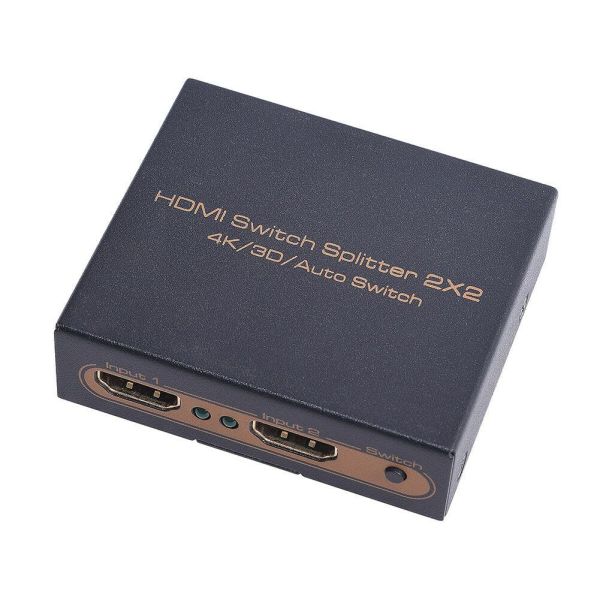

Item Name: 2x2 HDMI Switch Splitter
Material: ABS
HDMI Resolution: Up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz
Support Video Color Format: 24bit / deep color 30bit,36bit
HDMI Audio Format: DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
HDMI Max Bandwidth: 300MHz
HDMI Max Baud Rate: 9Gbps
Input/Output TMDS Signal: 0.5-1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: ≤15m AWG26 HDMI Standard Cable
Output Cable Distance: ≤15m(1080P)/8m(4K) AWG26 HDMI Standard Cable
Max Working Current: 500mA
DC Power Supply Voltage: USB 5V/DC 5V
Operating Temperature Range: -10℃ to 55℃
Storage Temperature Range: -20℃ to 60℃
Operating Humidity Range: 10 to 90%RH (No Condensation)
Storage Humidity Range: 5 to 95%RH (No Condensation)
Plug Type: UK/US/EU Plug (Optional)
Features: Portable, Stable, High Resolution, Widely Compatibility
Size: 148mm x 117mm x 57mm/5.83" x 4.61" x 2.24" (Approx.)

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x 2x2 HDMI Switch Splitter
1 x 5VUSB2.0-DC5.5 Power Adapter Cable
1 x User Manual

ProducentASK
KolorСzarny
